Premier, cost effective solution for small
to medium sized events where quick
deployment and superior sound are critical.

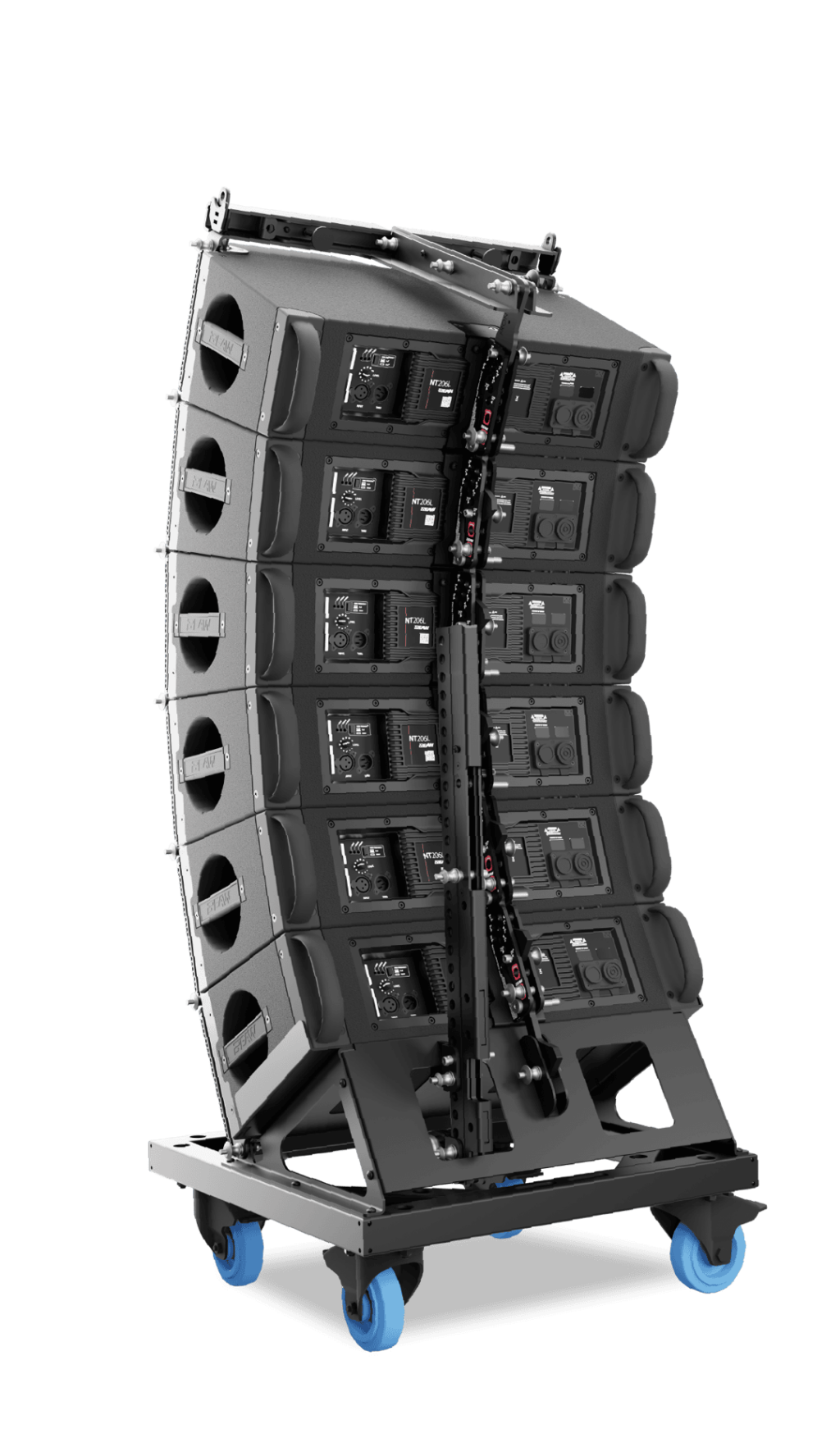

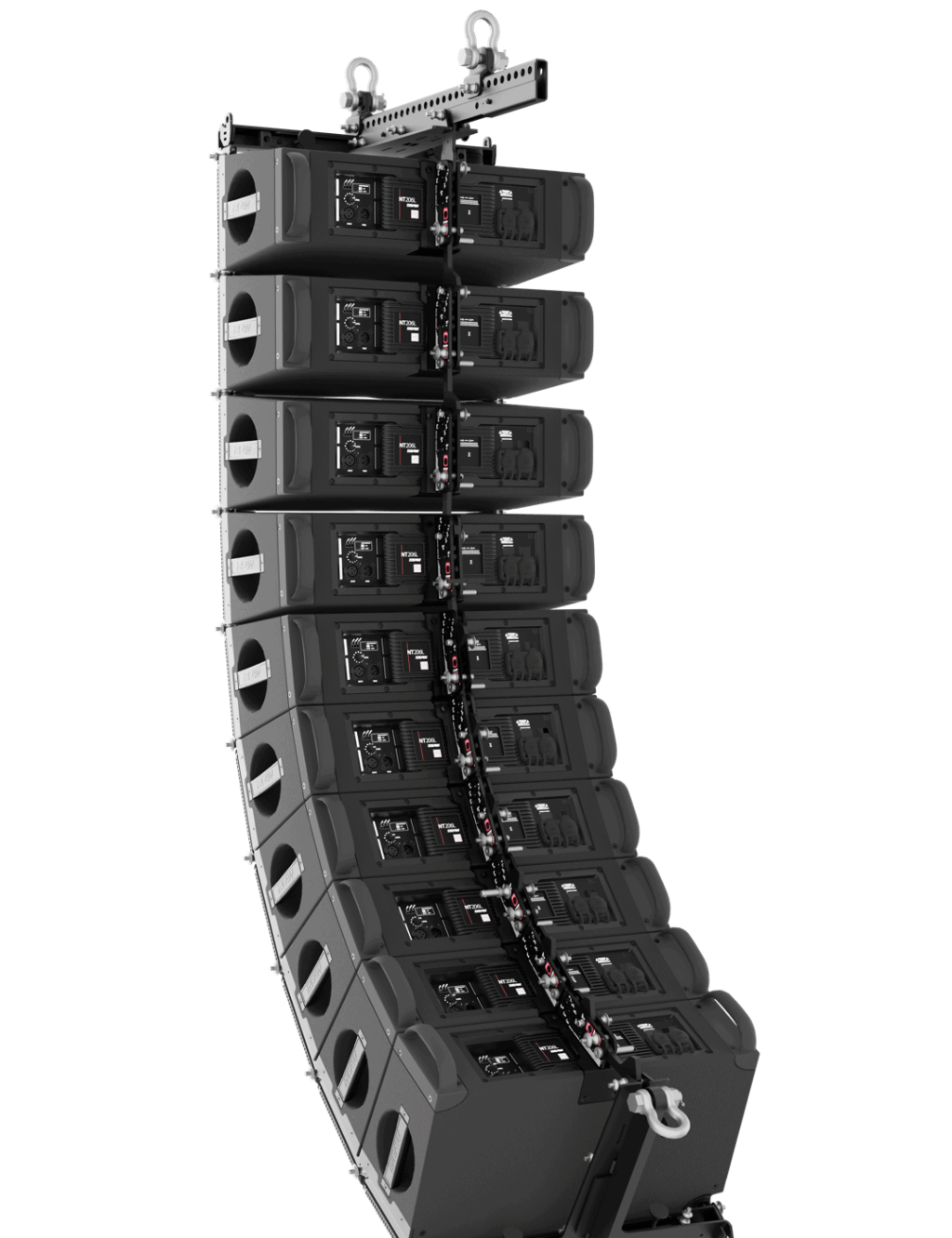

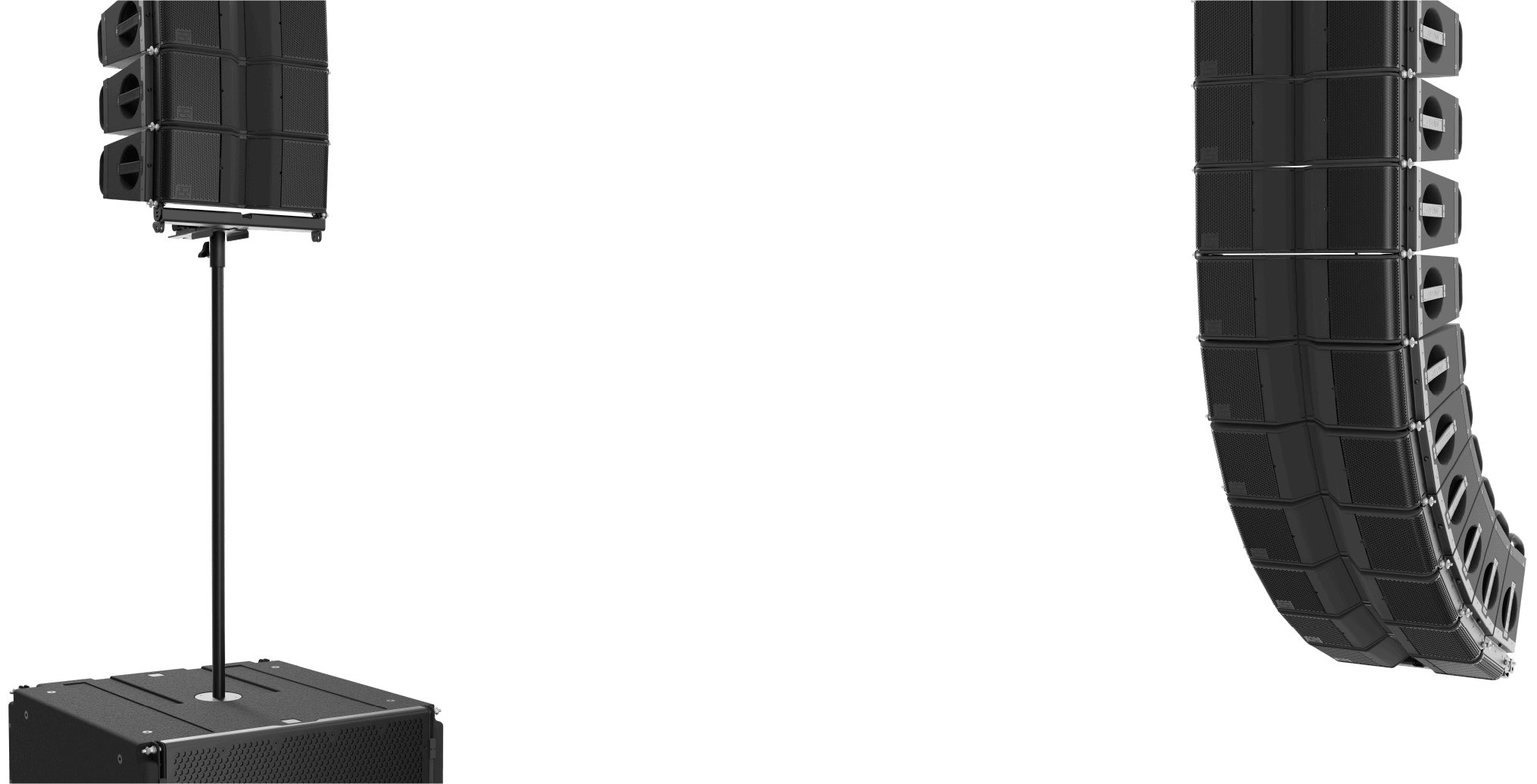

The NT206L is designed for simple, rapid deployment. Every configuration from pole mounted enclosures to ground stacking to a completely rigged and flown line array system are at your disposal. EAW offers numerous setup accessories to meet any challenge.
The fly bar can be inverted and used for any secure ground stacking or it can be used in conjunction with an M20 Mount for securing your array to the top of subwooffer. The fly system even offers a pull back adapter, often needed for creating extreme down angles for flown compact line arrays.
NT206L is one of the lightest, yet most powerful compact active line array loudspeakers available in the market today. It delivers 139db at 65-20Khz, all from a 31.7lb Baltic birch, steel and aluminum enclosure. It offers innovative adjustable horizontal coverage via EAW’s new Core Technology; AHD (Adjustable Horizontal Directivity) with field adjustable horn flairs providing a path to multiple coverage patterns. NT206L offers simple analog signal interface making your day worry-free from all too common audio networking control and transport.

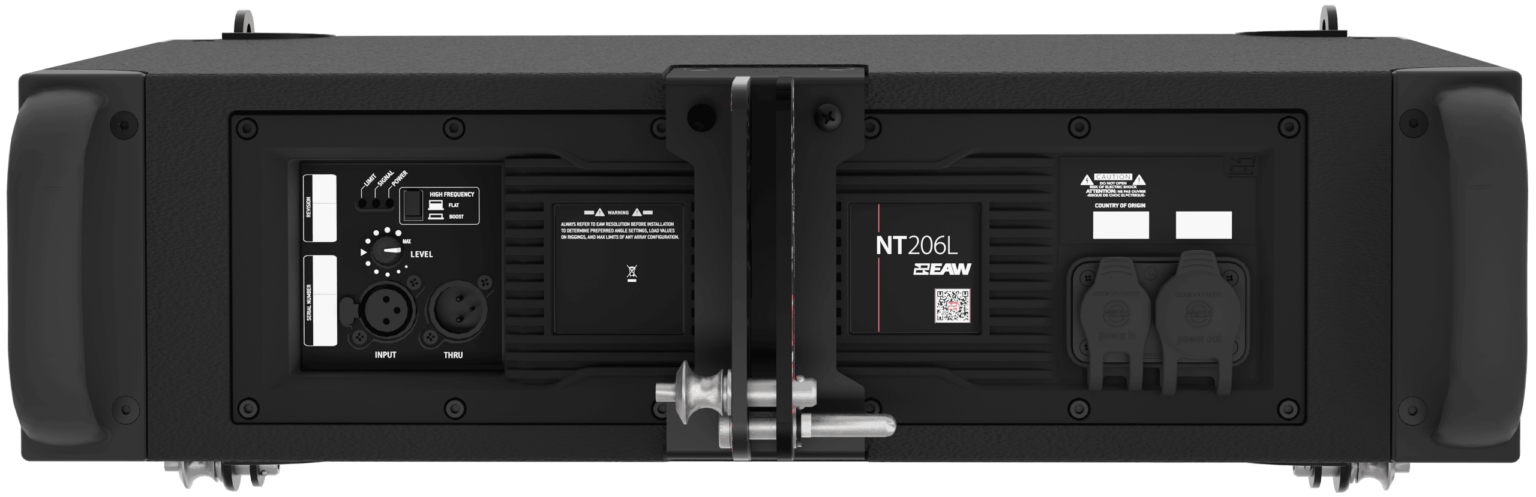

Readily accessible
on-cabinet analog controls.
Easy analog audio interface
without complex audio networking
Brings this model to life
by including 1500W of power.

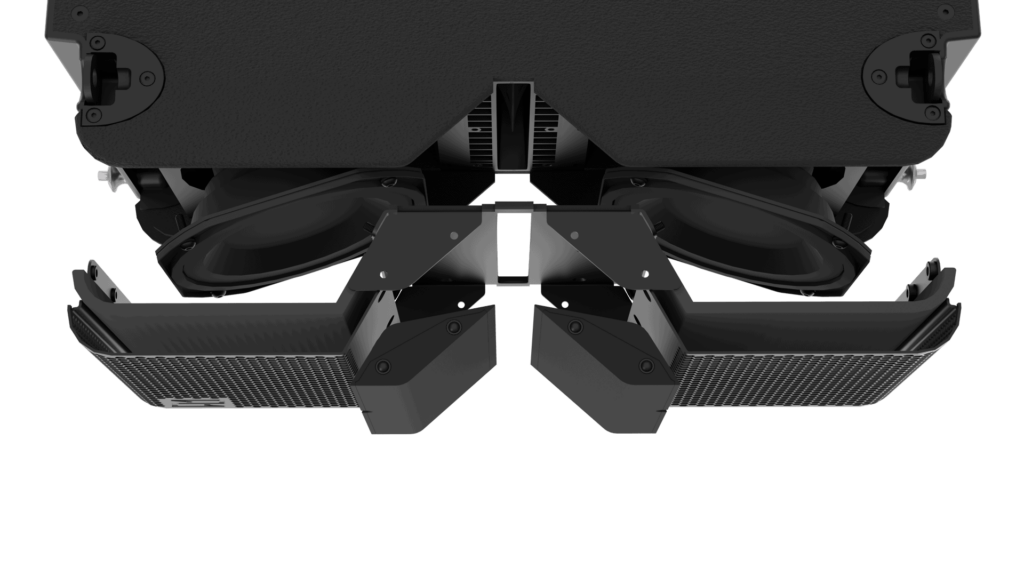

AHD (Adjustable Horizontal Directivity) technology allows horizontal high-frequency dispersion to be adjusted to 80, 110, or asymmetrically to 95 degrees based on the venue’s needs.
No tools or software required.
EAW’s patented Isophasic Waveguide allows each cabinet in the array to combine seamlessly providing even sound to every seat in the listening area.
Max SPL: 139 dB
Freq. Response: 65Hz – 20kHz
Nom. Beamwidth: Vertical: 10°
Horizontal – Narrow 80° –
Wide 110° – Asymmetrical (95° left or right of center)
NT206L is the first loudspeaker to be manufactured in EAW’s new company-owned factory in North America, which helps reduce lead times, carbon emissions, and enables tighter control of manufacturing and quality.
Bi-amp LF,HF
LF 2×6.5″ cone, 2″ VC Vented
HF 1×1″ exit, 1.75″ VC compression Driver (Adjustable Horizontal Directivity (AHD) Horn Loaded with Isophasic waveguide)
LF:1000W
HF:500W
AC Mains: Neutrik PowerCON TRUE1
XLR/Analog

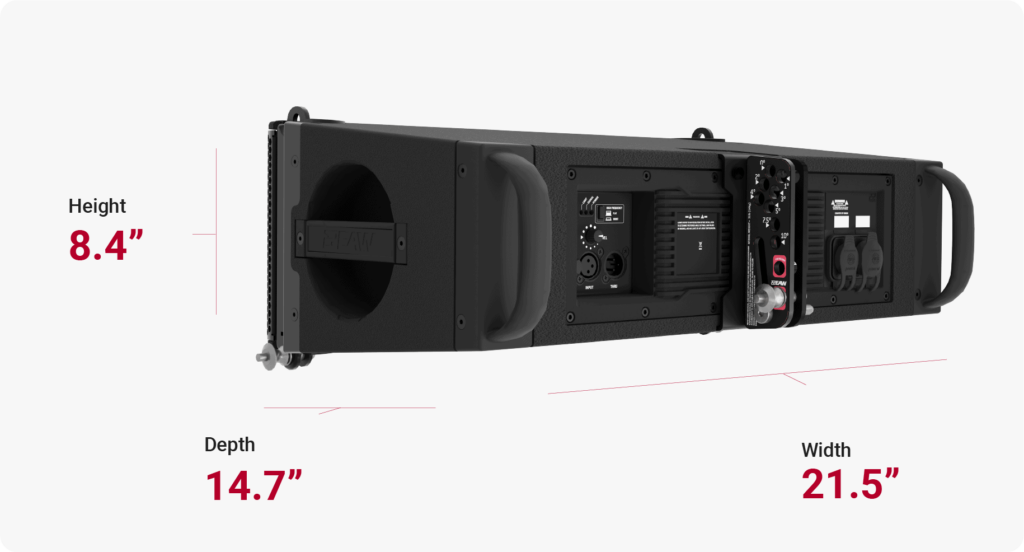

8.4in X 21.0in X 14.9in (213mm X 533mm X 379mm)
32lbs (14.5kg)
LF 2×10″ cone, 2.5″ VC Vented
HF 1×1.4″ exit, 3″ VC compression drivers Isophasic Wave Guide
